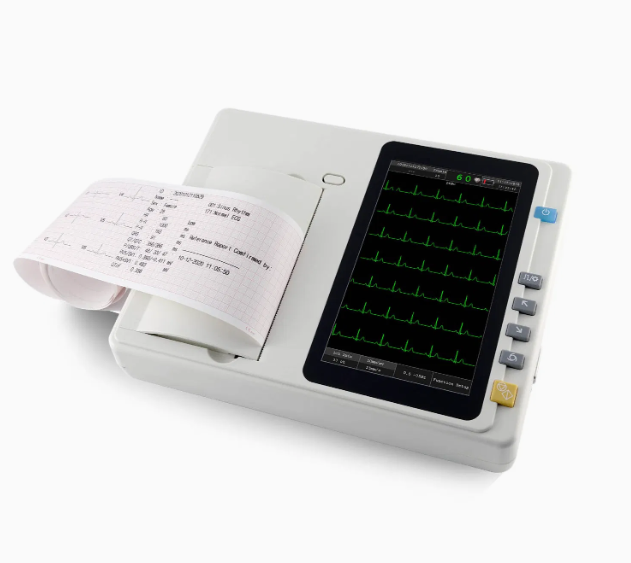

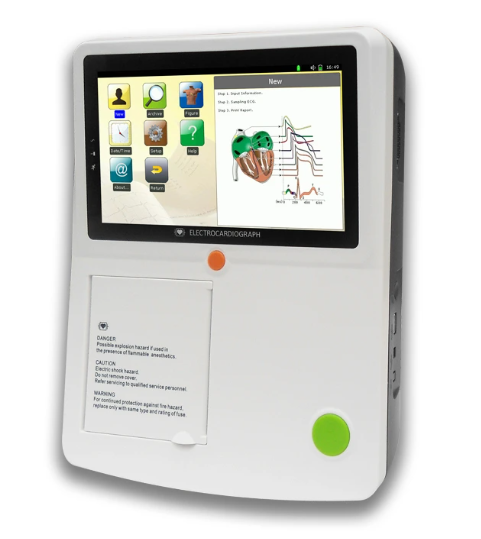

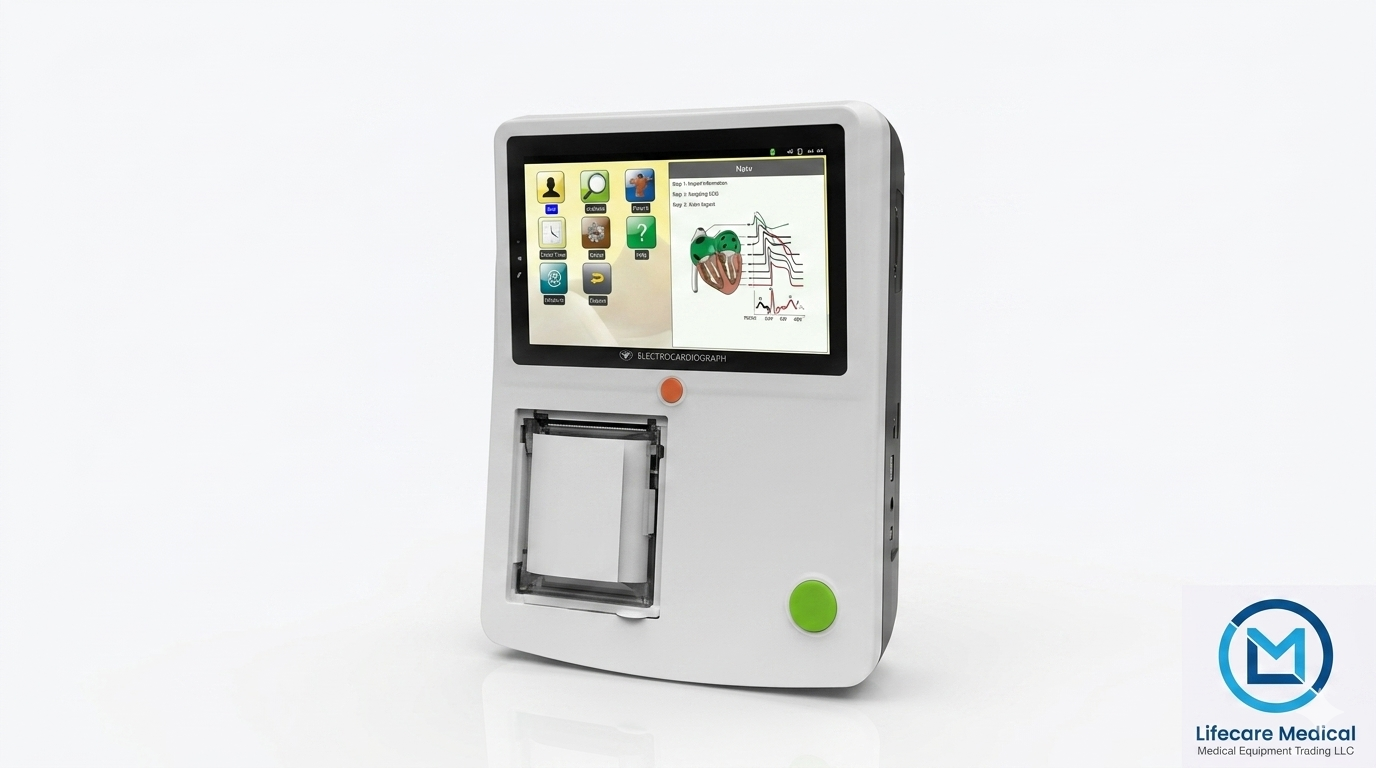

ECG Machine 3 Channel-M3
he M3 ECG Machine by MEDWORLD ELECTRONIC delivers unmatched precision and reliability in cardiac monitoring. Its cutting-edge technology and user-friendly design make it a must-have for any medical practice.
Technical Excellence You Can Trust 🛠️
Crystal Clear Readings: CMRR ≥ 100dB with advanced AC filtering.
Safety First: Floating input circuit with defibrillator protection.
High-Definition: 12-bit/1000Hz resolution captures every heartbeat.
Flexible Modes: Manual & auto operation for any situation.
Noise-Free: AC, ECG, & Anti-Drift filters for clean signals.
Accurate Capture: Input impedance > 50MΩ.
Patient Protection: Current leakage < 10µA.
Versatile Power: Operates on 100V-230V, 50Hz/60Hz.
High-Performance Recording 📝
Thermal Paper: For precise, high-contrast printouts.
Consistent Accuracy: Calibrating voltage at 1mV± 3%.
Comprehensive Coverage: Time constant > 3.2s & frequency response 0.05Hz~150Hz.
Clear Signals: Noise level ≤ 15 µVp-p.
Adjustable Speed: Paper speed at 12.5mm/s, 25mm/s, and 50mm/s.
Customizable Sensitivity: Settings at 5, 10, and 20mm/mV.
High-Res Prints: High-resolution thermal printer.
